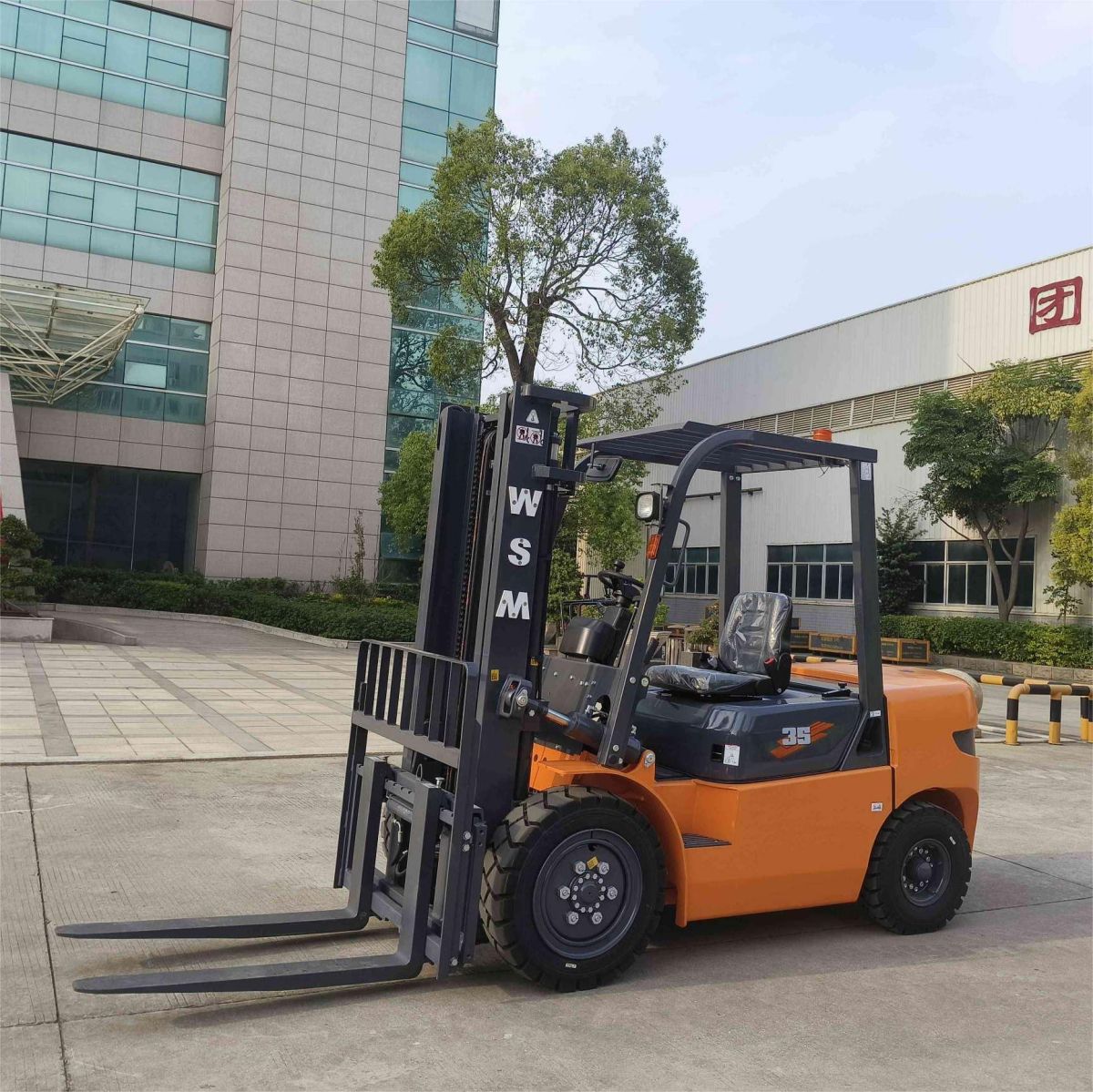

Small Forklift
PRODUCT SERIES: Diesel Forklift
Forklifts are industrial handling vehicles, which refer to various wheeled handling vehicles used for loading, unloading, stacking, and short distance transportation of palletized goods.
Color:
-
Product Features
1. Strong flexibility: Small forklifts have simple operation a, allowing for more flexible material handling.
2. Wide applicability: Small forklifts are manually suitable for various occasions, such as warehouses, factories, shops, etc., without the need for large-scale facility renovations.
3. Special homework functions can affect the specific configuration of forklifts, such as handling paper rolls, molten iron, etc., which require forklifts to install accessories to complete special functions.
Product Application Scope
Forklifts are industrial handling vehicles widely used in ports, stations, airports, freight yards, factory workshops, warehouses, circulation centers, and distribution centers. They perform loading, unloading, and handling operations of pallet goods in ship cabins, carriages, and containers. They are essential equipment in pallet transportation and container transportation.
Product Parameters
Program
unit

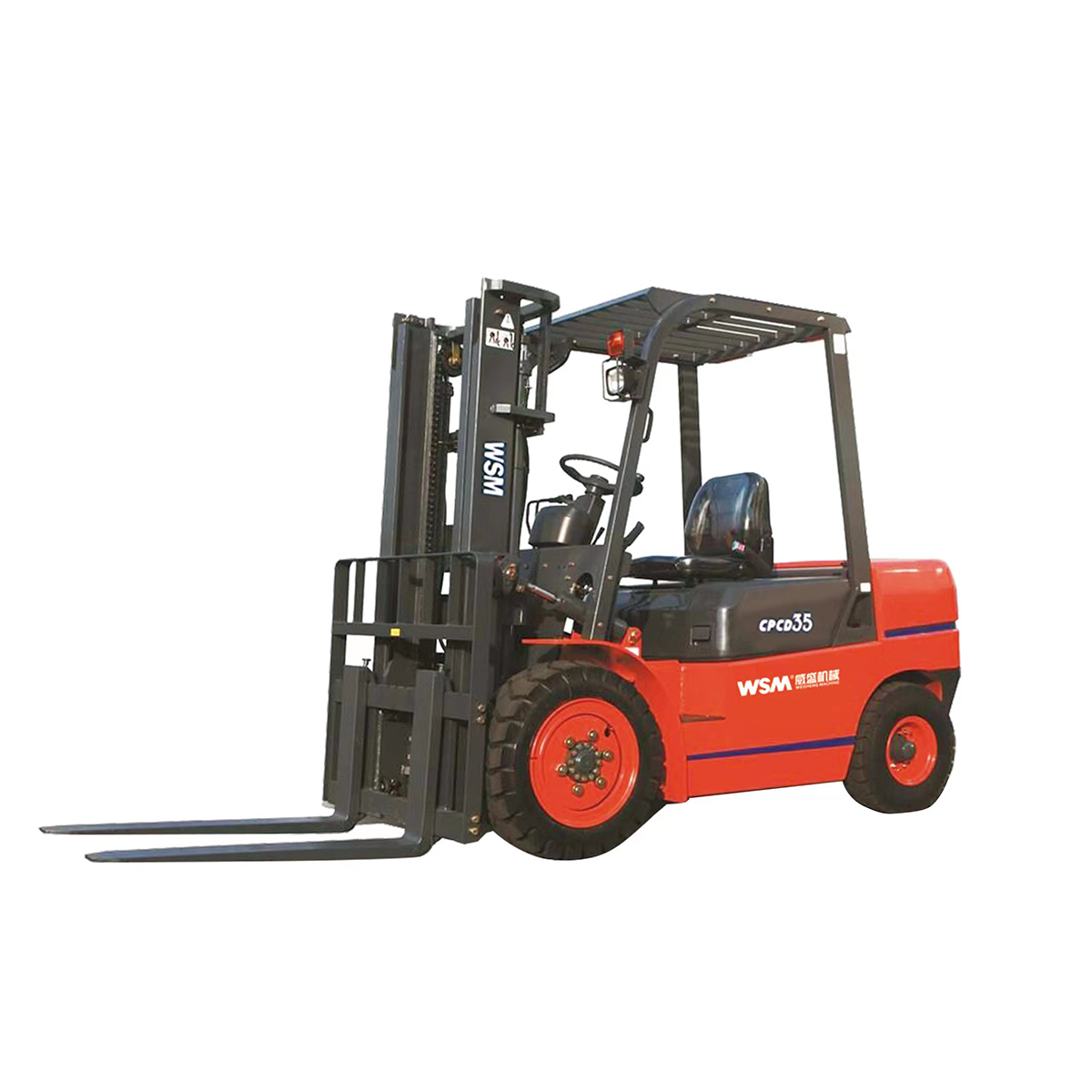

CPCD35
Type of power
disel
Rated capacity
kg
3500
Load center
mm
500
Lifting height
mm
3000
Free lifting height
mm
120
Fork size
mm
1070*125*50
Mast tilt angle
°
Front 6 rear 10
Front suspension distance
mm
481
Rear suspension distance
mm
500
Overall dimension
Overall length (excluding fork)
mm
2710
Overall Width
mm
1230
Height of mast not lifting
mm
2070
Height of overhead guard
mm
2190
Min.Turning radius
mm
2550
Max.Travel speed(unload)
Km/h
20
Max.Lifting speed(full-load)
mm/s
460
Max.Gradeability
%
20
Total weight
kg
4400
Tire
Front wheel
28×9-15-14PR
Rear wheel
6.50-10-10PR
wheel track
Front wheel
mm
1010
Rear wheel
mm
980
Wheelbase
mm
1750
Min. ground clearance
Mast
mm
150/120
Frame
mm
170/150
Fuel tank capacity
L
70
Engine parameters
Standard configuration
Model
Xinchai(National IV)
Rated power
kw/r
36.8/2500
Rated torque
N • m/r
190/1600 ～1800
Number of cylinders
4
Remark:With the technical progress, the product structure and parameters will be continuously improved. If the sample information is slightly inconsistent with the real object, the real object shall prevail.

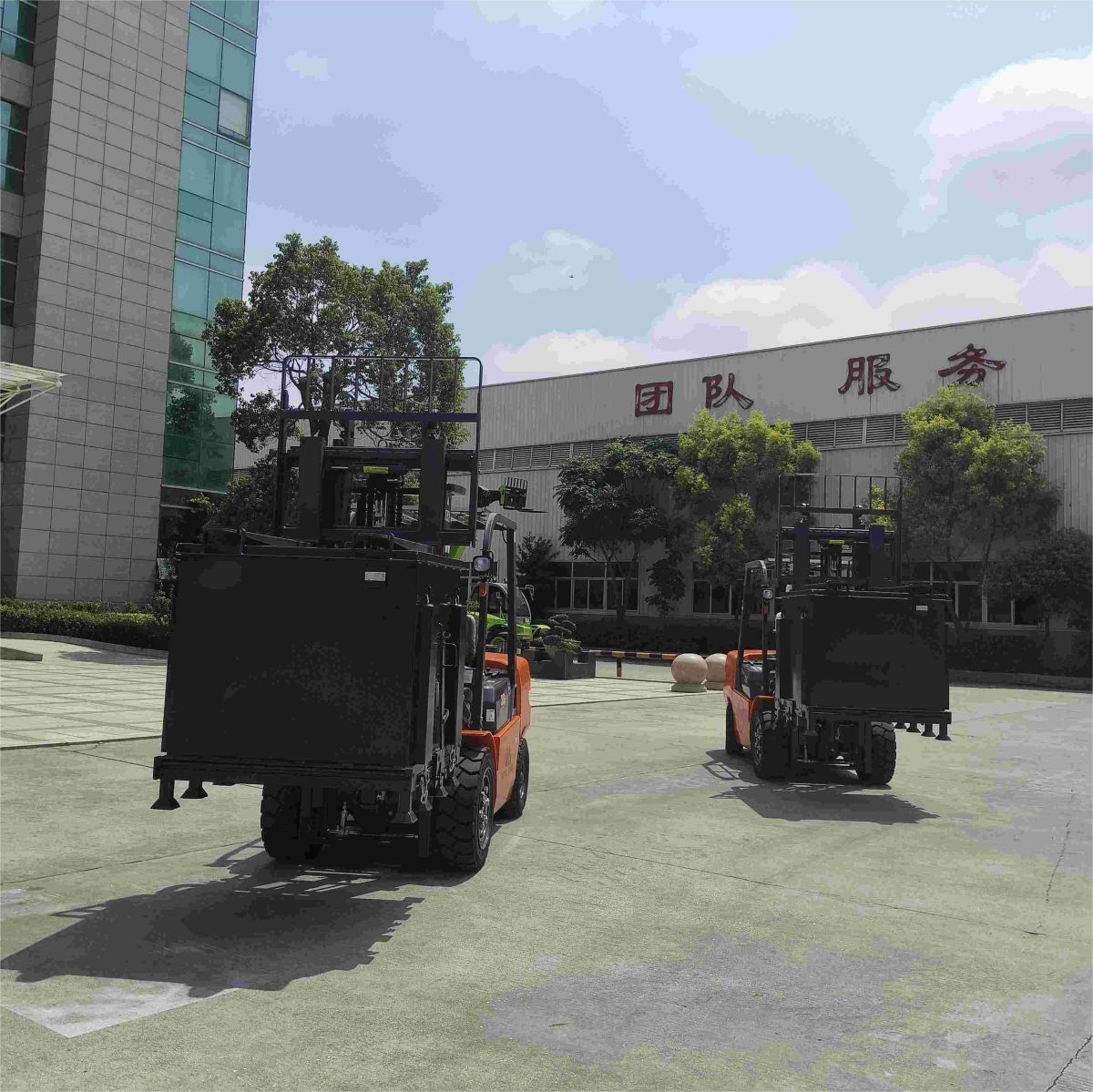

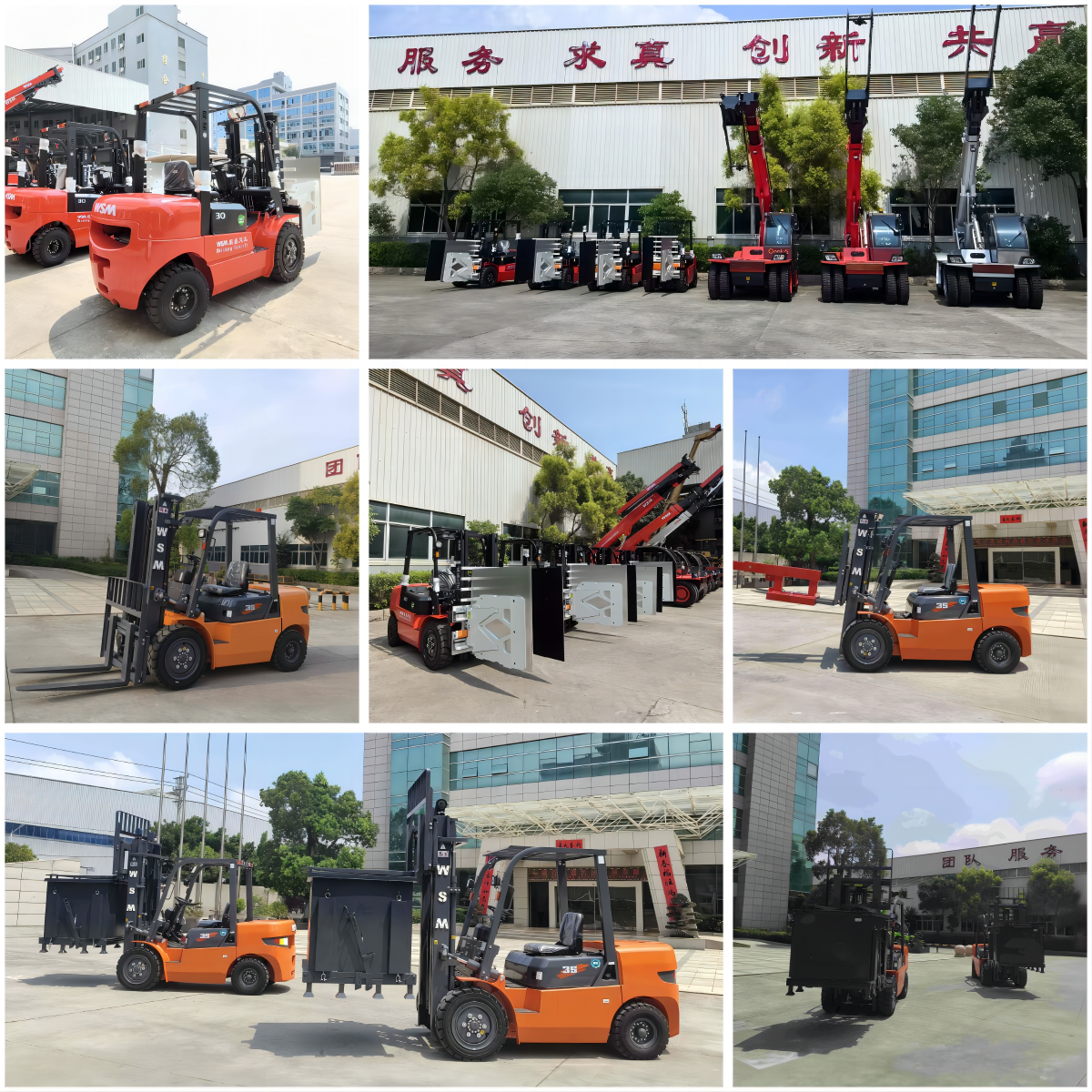

Product Application Diagram
