Internal Combustion Counter Balanced Forklif Truck
Internal Combustion Counter Balanced Forklif Truck Internal Combustion Counter Balanced Forklif Truck Internal Combustion Counter Balanced Forklif Truck Internal Combustion Counter Balanced Forklif Truck

Internal Combustion Counter Balanced Forklif Truck

PRODUCT SERIES: Diesel Forklift

Internal combustion forklift refers to a forklift that uses diesel, gasoline, or liquefied petroleum gas as fuel and is powered by an engine. The load capacity ranges from 0.5 tons to 45 tons. Generally divided into: Internal combustion counter balanced forklif, container forklifts (front lift), and side forklifts.

Internal combustion counter balanced forklif truck generally use diesel, gasoline, and liquefied petroleum gas fuels, with a load capacity of 0.5-45 tons, and diesel forklifts with a load capacity of more than 10 tons.

Color:

Product Features

1. Front & back visual system,clear vision ,more safety ,high efficiency.

2. The door frame is strong and durable, and the compound side shifting and adjusting distance for is unnecessary to be equipped with another side shifting device.

3. Internal combustion counter balanced forklif truck, although relatively large in size, has good stability, is suitable for heavy loads, and has no limit on usage time. Compared with gasoline engines, diesel engines have better power performance (low speed not easy to stall, strong overload capacity, and long-term operation ability)



Product Application Scope

Forklifts are industrial handling vehicles widely used in ports, stations, airports, freight yards, factory workshops, warehouses, circulation centers, and distribution centers. They perform loading, unloading, and handling operations of pallet goods in ship cabins, carriages, and containers. They are essential equipment in pallet transportation and container transportation.



Product Parameters

Model

CPCD320

Rated lifting capacity

kg

32000

Max lifting height

kg

3500

Load center distance

mm

1250

Length(without fork)

mm

7000

Width

mm

3200

Height(mast)

mm

3900

Machine weight

kg

42000

Standard fork size (L * W * H)

mm

2400*300*105

Fork adjustment range

mm

800-2800

Wheel base

mm

4650

Min.turning radius

mm

6600

Min. ground clearance

mm

320

Number of gears (front/rear)



2\1

Steering system mode



Full hydraulic steering

Engine Power

Kw/rpm.

178/2200


Product Configuration

1. Standard Configuration

Engine:Weichai Engine

Gearbox:Weisheng special gearbox

Electric roll cab,Electric tilting rear cover

Hydraulic adjusting fork

Tyre:Pneumatic tire (pneumatic tire)



2. Optional Configuration

Cummins engine

Solid tire

Cab air conditioning and warm air blower

The mast with a height of  4~9m can be lifted

Wet brake drive axle

Pinch wood fork/String rod/Side shifter/Log grab/Lifting Device



Product Application Diagram

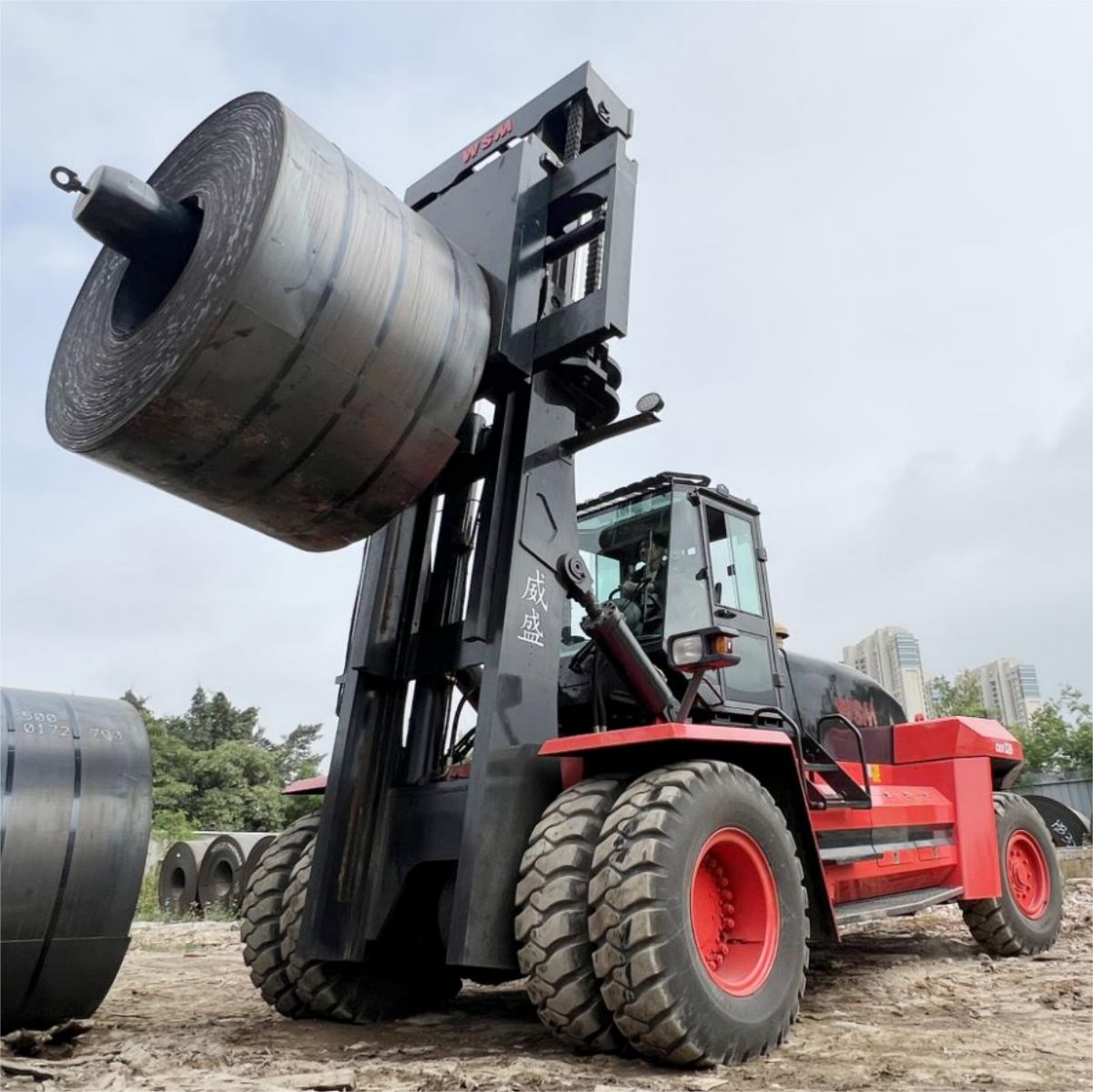

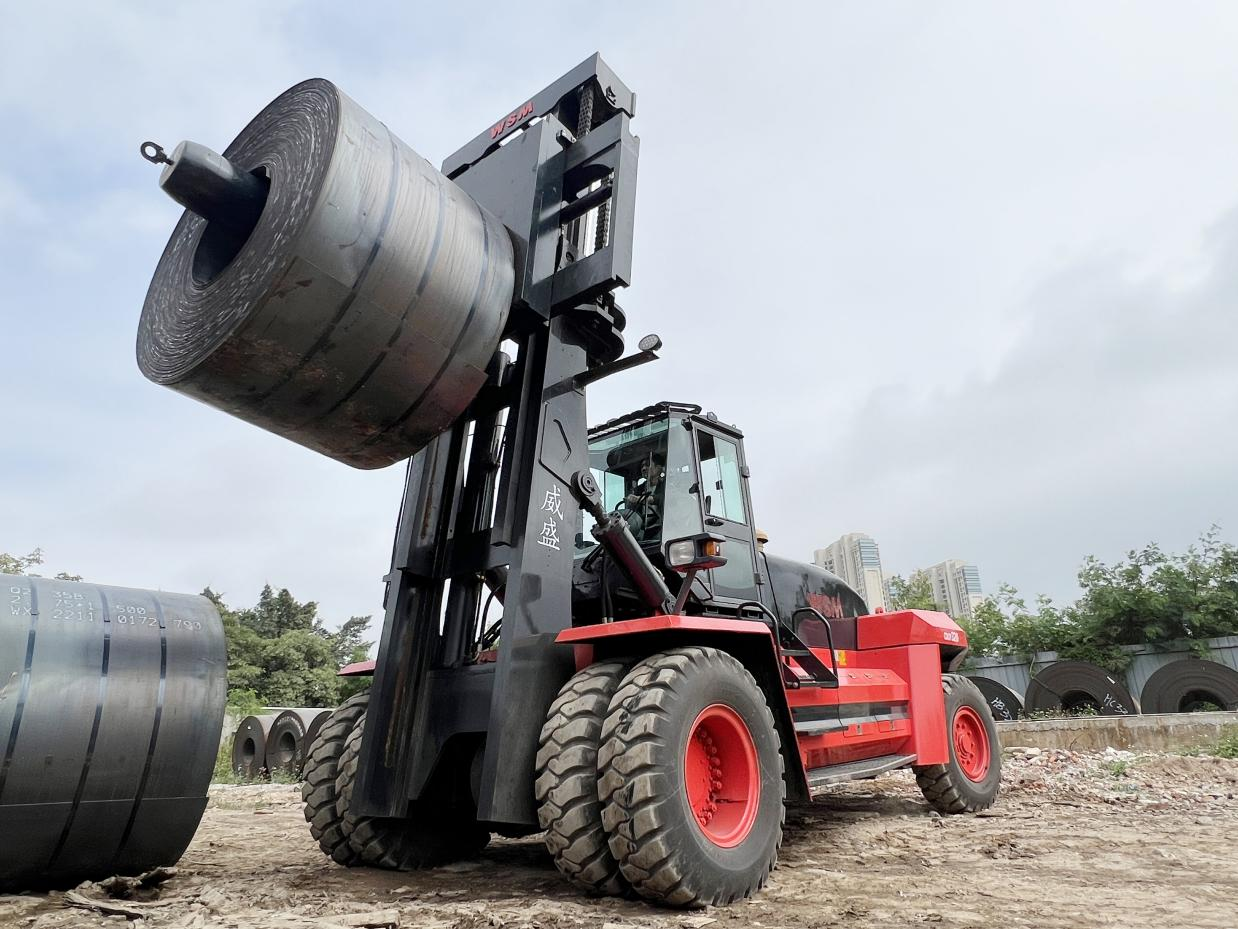

Using a string rod to transport the roll boardUsing a string rod to transport the roll board

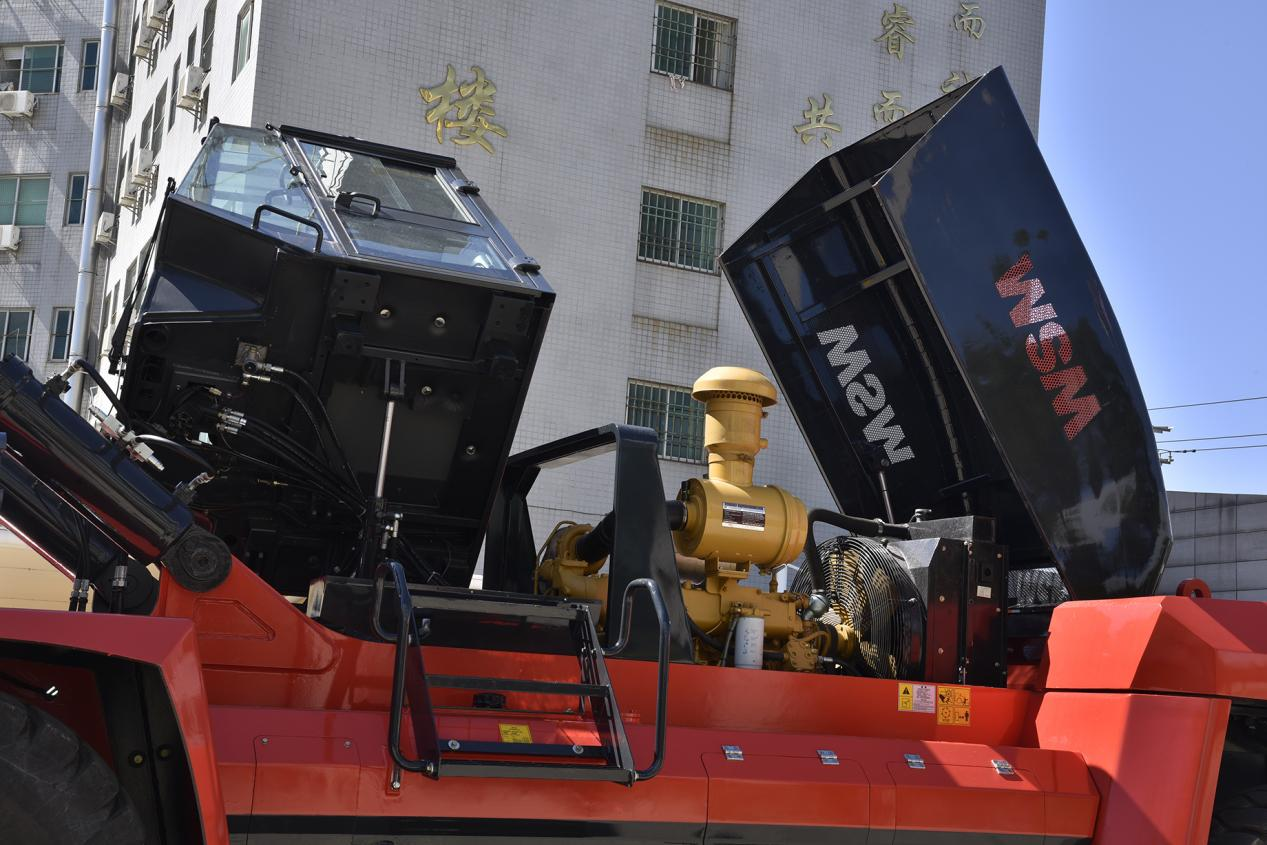

The cab and hood can be tilted over

The cab and hood can be tilted over

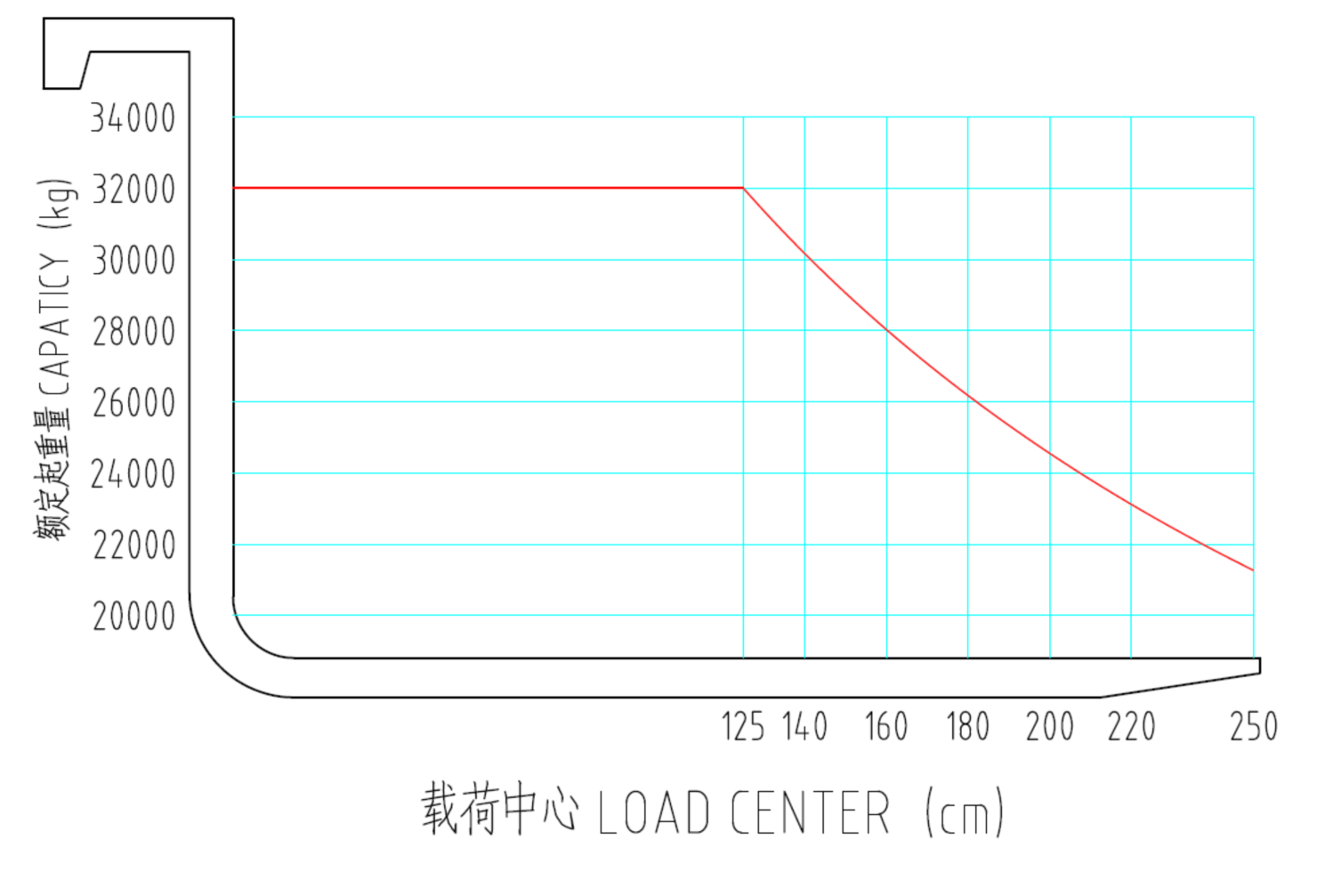

Load curveLoad curve
