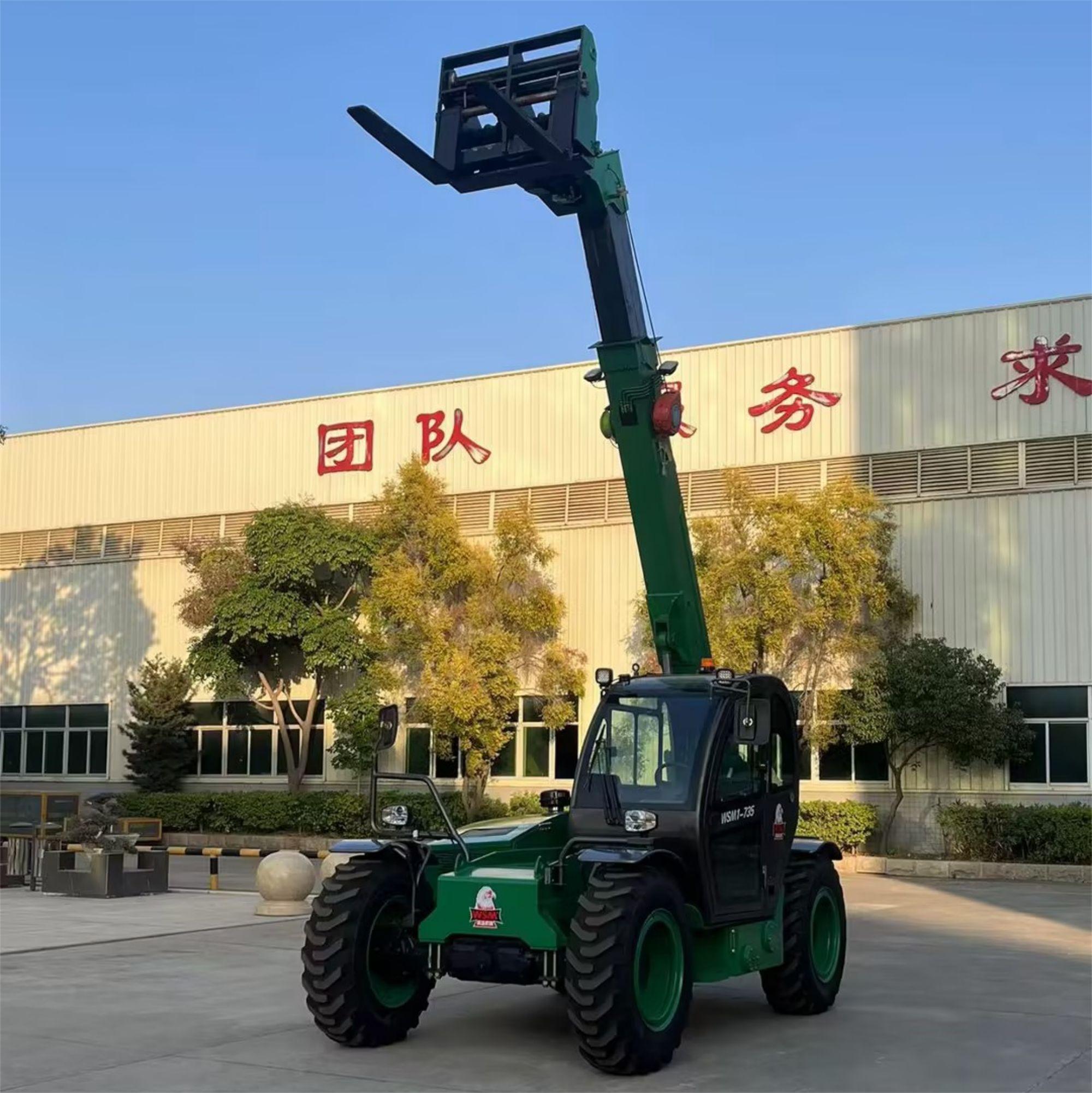

Telescopic Handler
Telescopic Handler Telescopic Handler Telescopic Handler Telescopic Handler

Telescopic Handler

PRODUCT SERIES: Telescopic Handler

Telescopic handler is a new product combined with traditional trucks, wheel loader, aerial work platform and small truck cranes. It is a multi-purpose fork lift truck with a telescopic arm with off-road performance.It is indispensable to the agriculture, architecture and other projects.

Color:

Product Features

1. The driving and steering types include two-wheel drive two-wheel steering, off-road four-wheel drive two-wheel steering and four-wheel steering There are three types of wheel-drive four-wheel steering. Diversified choices for customers.

2. Adopt independent hydraulic drive radiator. The fan can rotate in both directions, suction and heat dissipation, and reverse blowing can clean the surface of the radiator.

3. It adopts domestic or international famous brands, and the configured engines are all electronically controlled supercharged diesel engines, which have large power and torque reserves, better power performance, and good maneuverability.



Product Application Scope

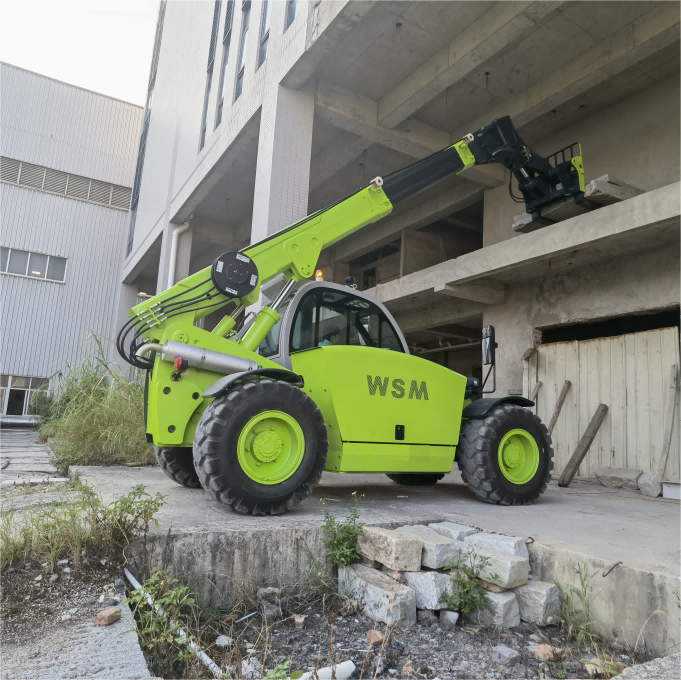

1. Construction Site

Unloading and short-distance transportation of building materials, directly placing building materials at the work site, or feeding them to truck cranes and tower cranes.

Handling of various materials on the construction site and site cleaning and tidying.

Use forks and slings to transport block, strip, and irregularly shaped building materials;

use hoppers to transport bulk materials and level the ground; use aerial work platforms to enter High-altitude installation;

using glass suction cups to install curtain walls; and so on.


2. Industrial Enterprise

Handling various materials on rough ground.


3. Agriculture and Animal Husbandry

Handling of forage packs in the ranch, chopping of feed, feeding of forage, and cleaning of manure.

Packaging and transporting forage and straw.



Product Parameters

Model

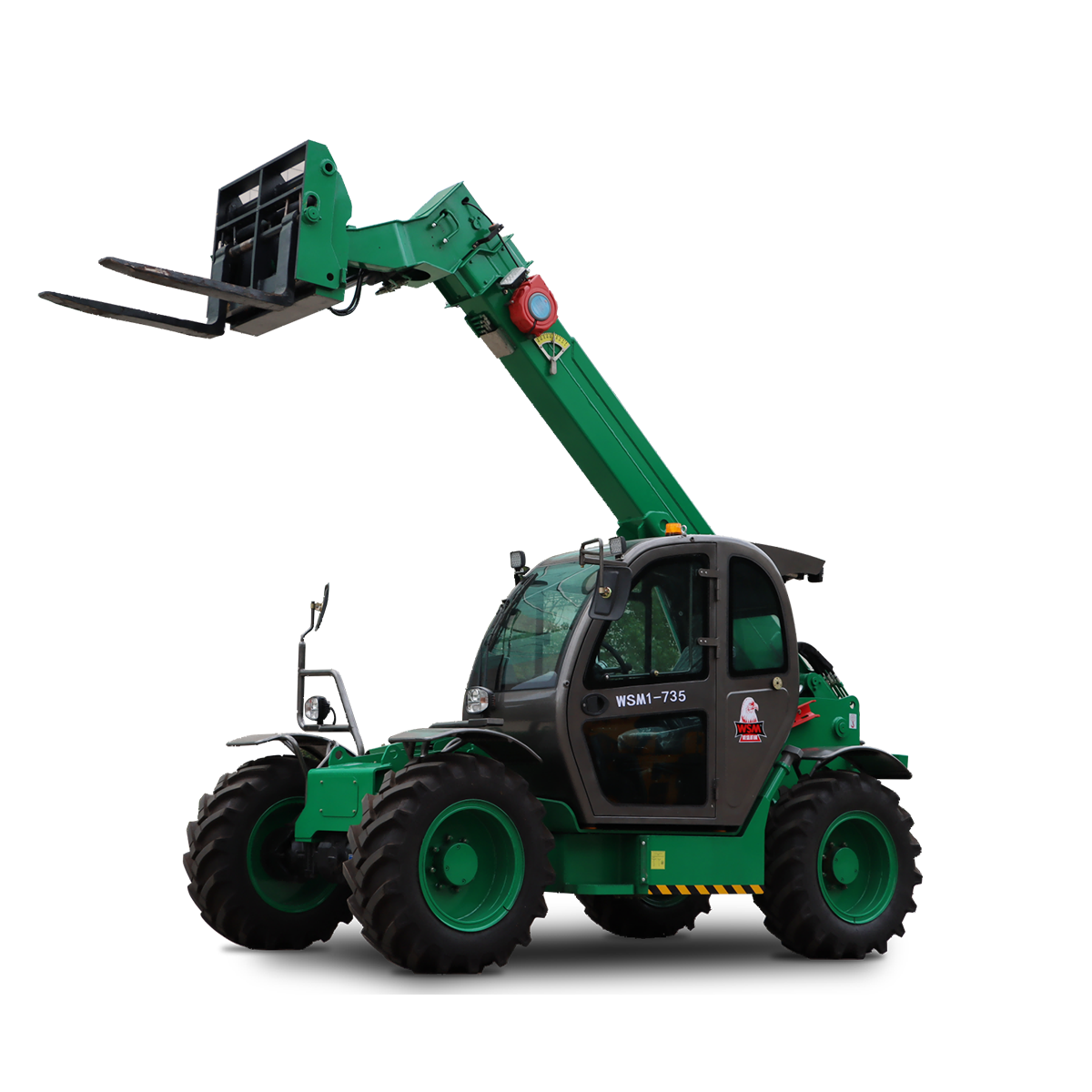

WSM1-735

Performance

Rated lifting capacity

kg

3500

Load center distance

mm

500

Max. lifting height

mm

7000

Load capacity at max.lifting height

kg

2800

Max. driving speed

km/h

40

Min.turning radius

mm

4000

Dead-weight

kg

8200

Boom

Number of boom  sections



Two sections
 (one fixed and the other extended)

 Overall Dimensions

Length (without fork)   L

mm

5040

Width (W)

mm

2180

Height (H)

mm

2350

Wheel base (B)

mm

2850

Fork size  L1*W1*H1

mm

1000*125*45

Name of configuration

Standard Configuration

Optional Configuration

Engine manufacturer

Yuchai

CUMMINS

Transmission mode

Hydrostatic transmission

/

Drive mode

4*4 Four-wheel drive

/

teering mode

Front wheel steering/ Four-wheel steering/ Frab driving

/

Hydraulic oil tank volume

140L

/

Fuel tank volume

110L

/

With the technical progress, the product structure and parameters will be continuously improved. If the sample information is slightly inconsistent with the real object, the real object shall prevail.

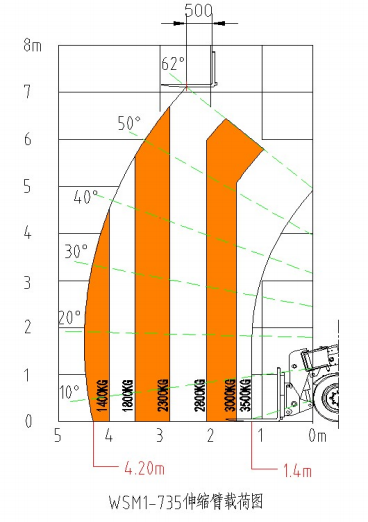

Product load curve graph

Product load curve graph

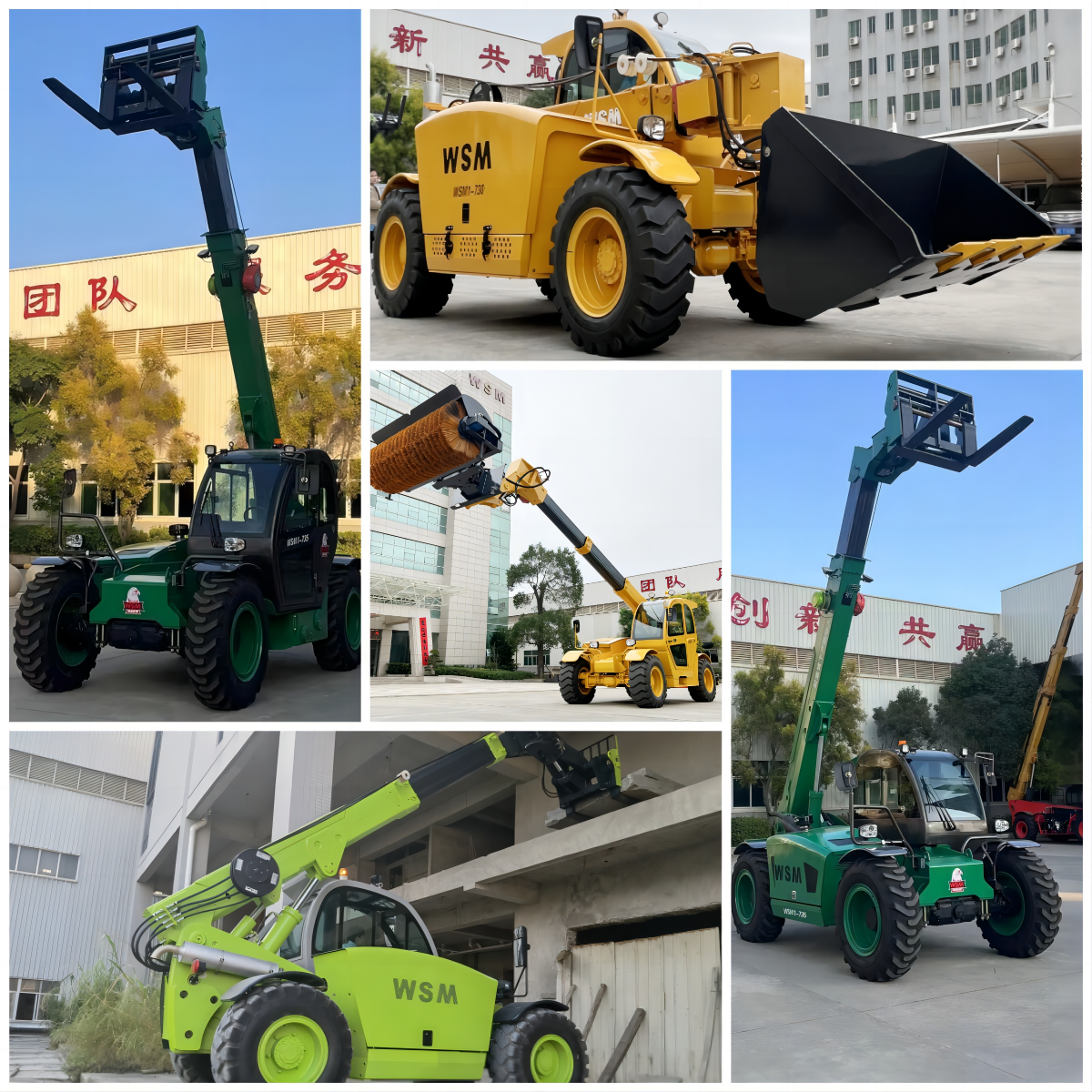

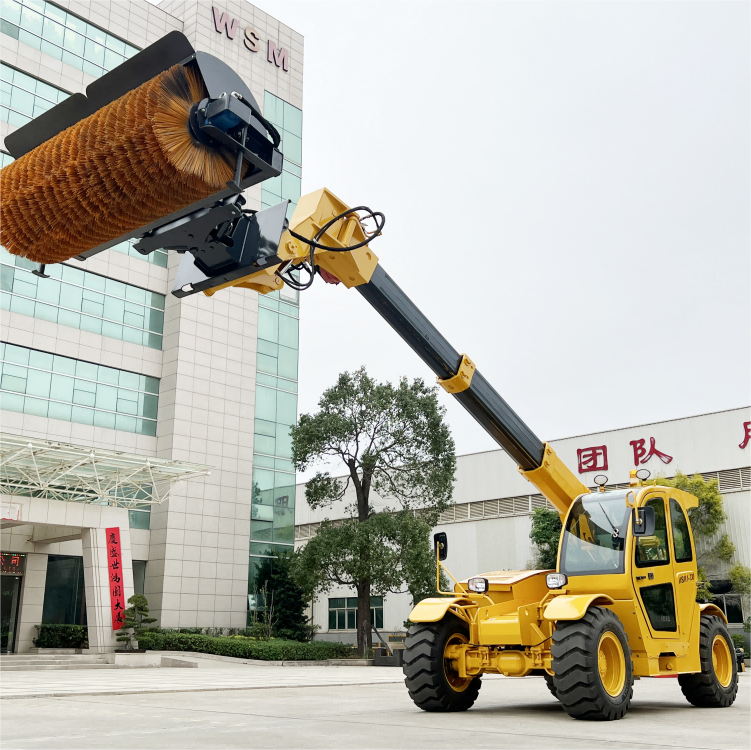

Product Application Diagram

Telescopic Handler details 1
