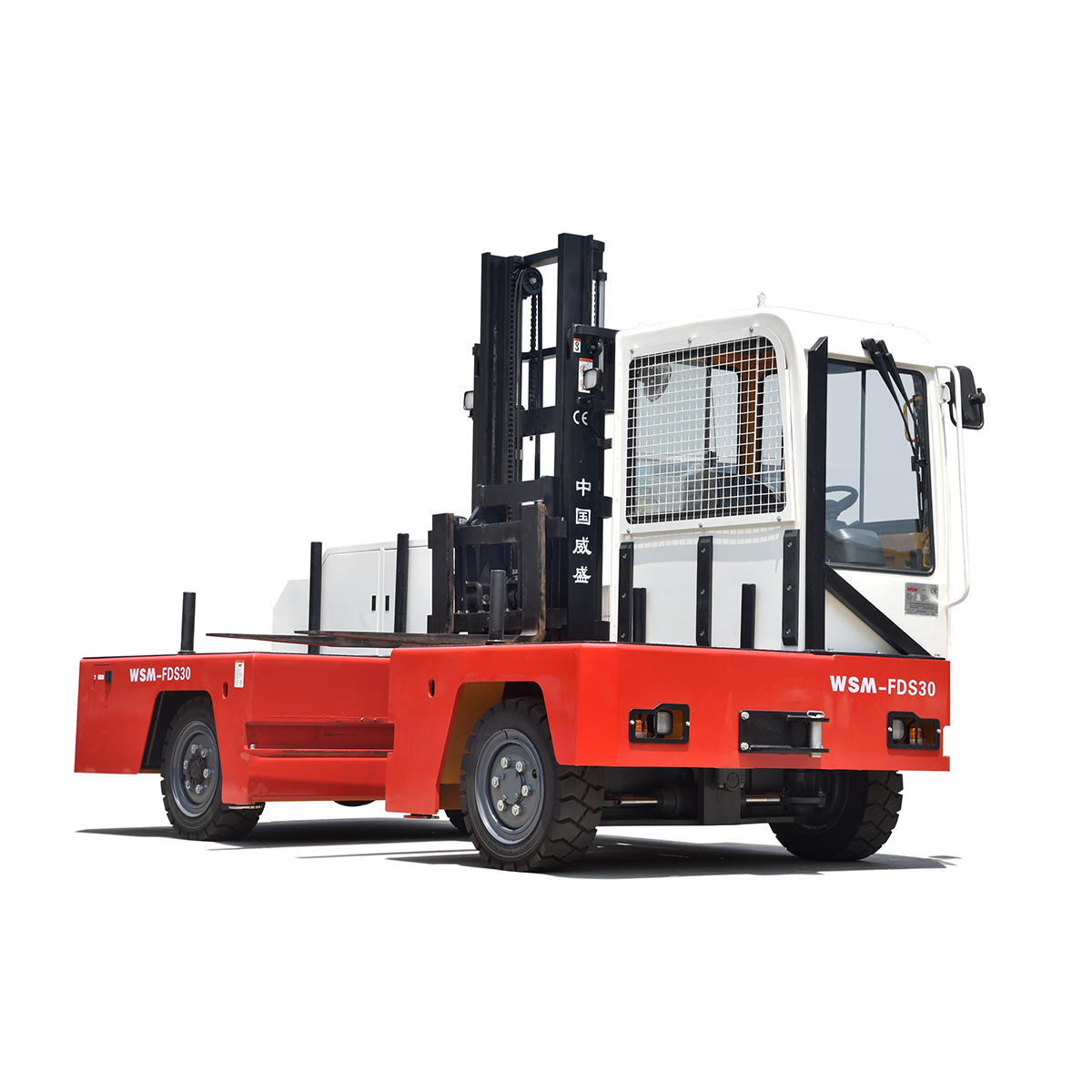

Side Forklift Truck
PRODUCT SERIES: Side Forklift
The mast, lifting mechanism, and fork of a side mounted forklift are located in the middle of the forklift and can move along the lateral guide rail. The fork is located on the side of the forklift, and there is also a cargo platform on the side.
Color:
-
Product Features
1. Efficient
The vehicle enters the passage, with the forks facing the shelves or pallets, and there is no need to turn before operating.
2. Convenience
Beneficial for handling rectangular and large-sized goods, as these goods are parallel to the vehicle body and are not limited by the width of the passage.
Product Application Scope
The side forklift's forks are installed on the side of forklifts and have the ability to directly pick up goods from the side. Therefore, they are mainly used to pick up long shaped goods, such as wooden bars, steel bars, etc.
Product Parameters
Model
WSM-FDS30
Rated lifting capacity
kg
3000
Max lifting height
kg
3600
Load center distance
mm
500
Fork tilt angle(up/down)
°
6°/6°
Platform width
mm
1200
Platform length
mm
4375
Fork length
mm
1070
Overall dimension(L×W×H)
mm
4450x2000x2450
Machine weight
kg
6300
Wheel base
mm
2550
Front wheel
/
28X9-15-12PR
Hindrear wheel
/
28X9-15-12PR
Engine Power
Kw/rpm.
36.8/2500

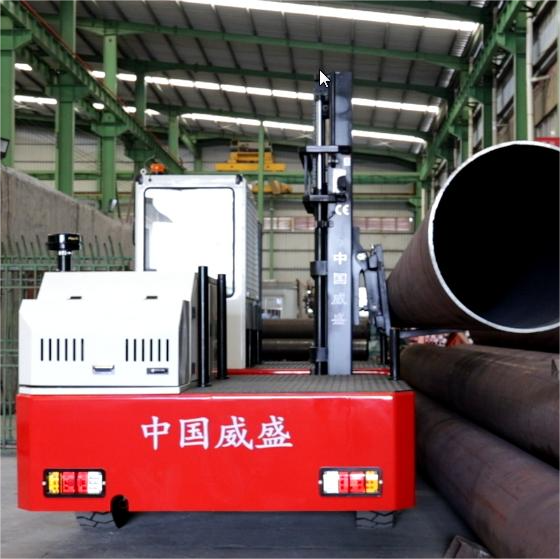

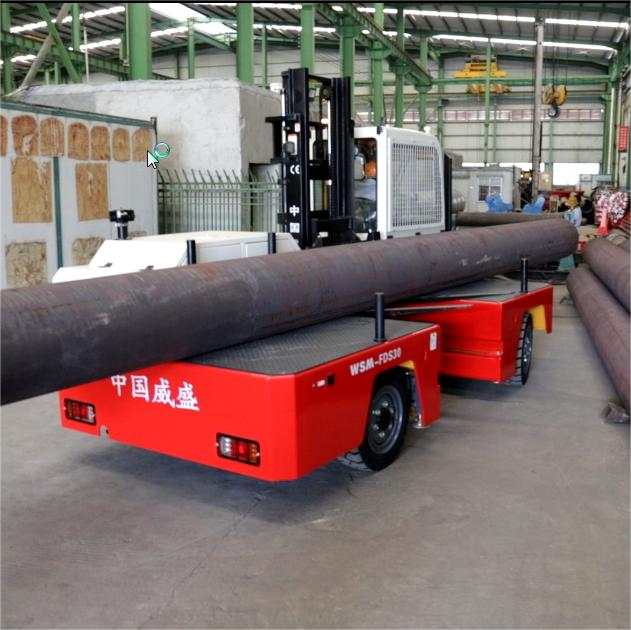

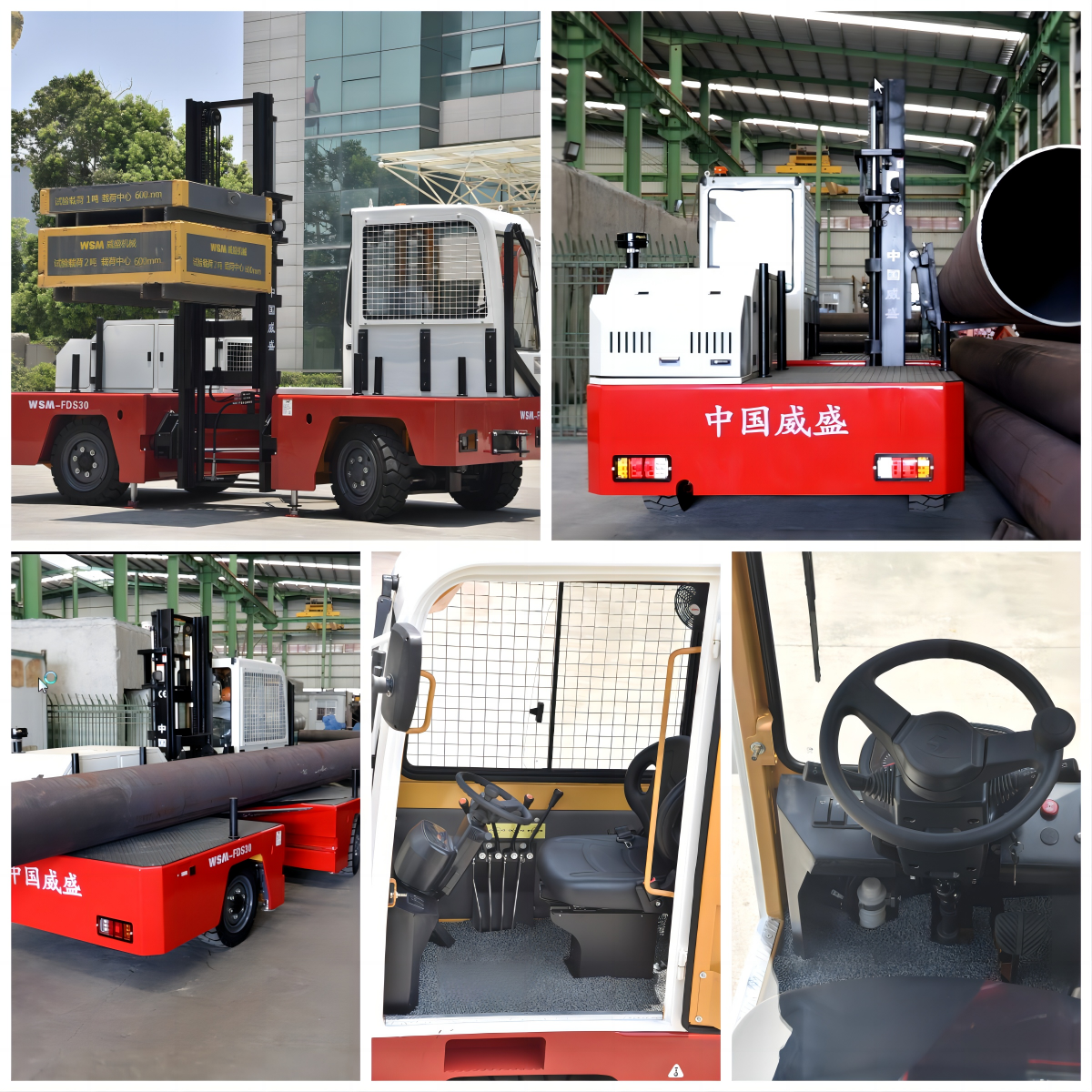

Product Application Diagram
