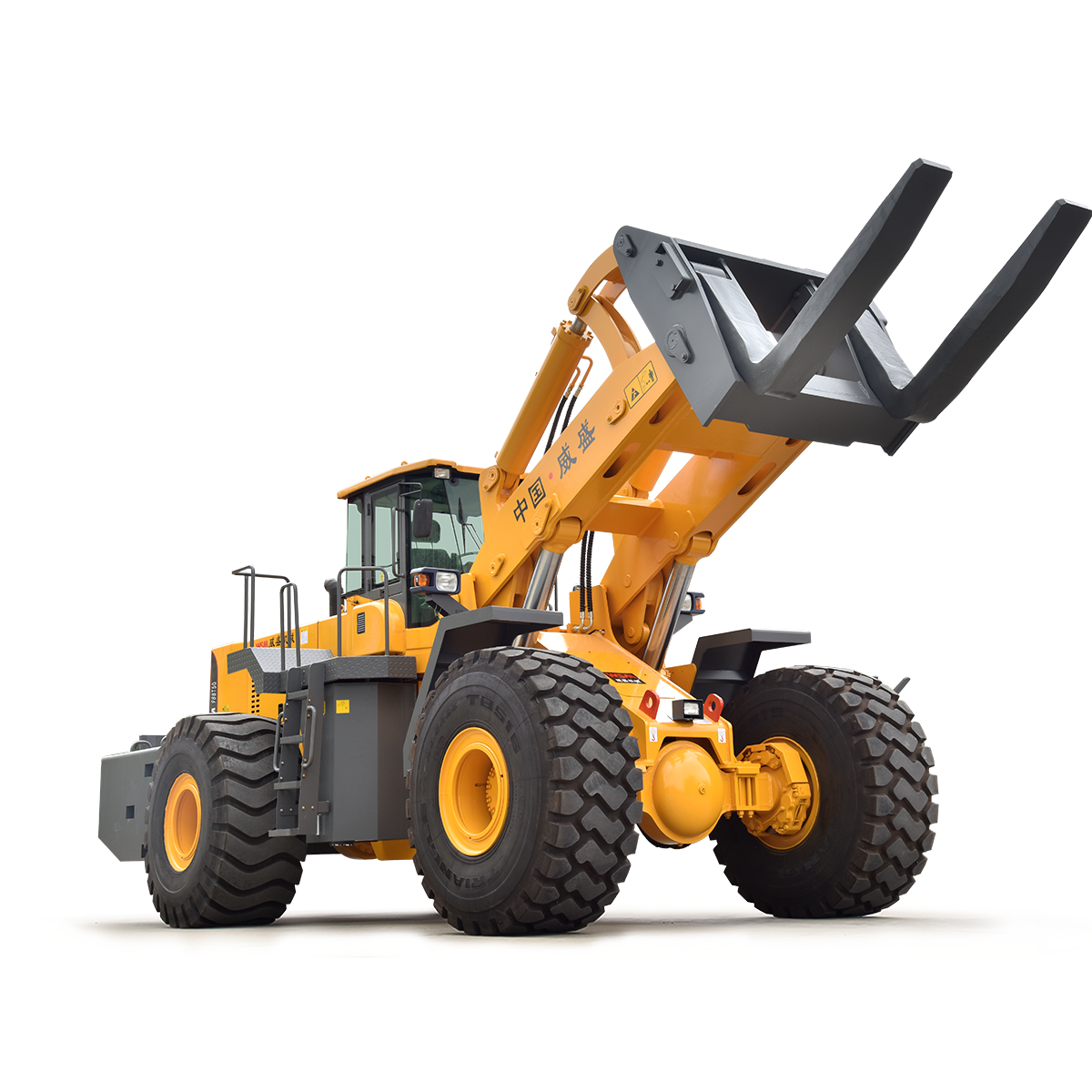

Large Ton Forklift Wheel Loader
PRODUCT SERIES: Forklift Wheel Loader
Marble forklift wheel loader is an upgraded product based on wheel loader.It changes the bad situation of forklift truck,crane,excavator,and mast hanging working at stone mines of low efficiency,high cost.
Color:
-
Product Features
1. Superior fork and shovel loading performance
Superior forklift loading performance, equipped with large bore lifting cylinder, ground lifting force reaches 54 tons.
2. Large lifting force

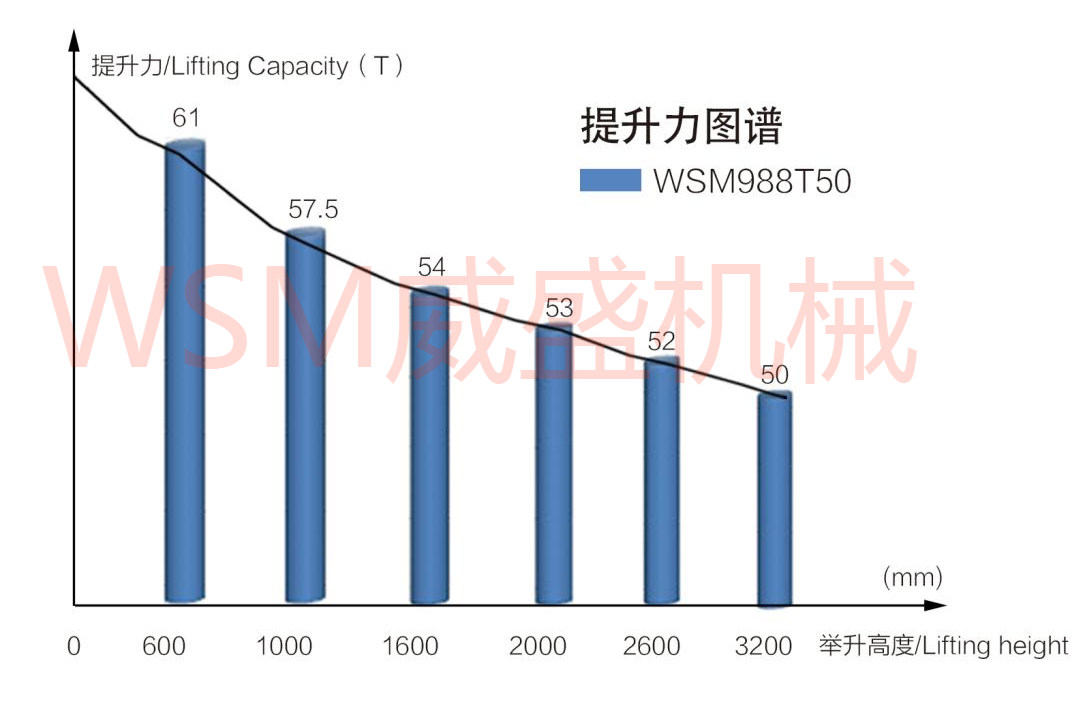

Large lifting force (maximum lifting force 54 tons), easy to warp the barren material, collecting bucket loading and unloading barren material light and flexible.
3. Adopting self-developed and produced reinforced welded drive axle, with compact and reasonable structure, full floating half-axle, high input torque, high transmission efficiency, strong bearing capacity and superior performance.
Product Application Scope
Marble mine, granite mine, iron ore, coal mine, road maintenance, etc.
Product Parameters
Model
Unit
WSM988T50
Rated lifting capacity(the entier)
kg
50000
Max lifting capaity(at 1600mm)
kg
54000 (at 1600mm)
Load center distance
mm
1000
Length (fork flat on the ground)
mm
11200
Width
mm
3640
Height
mm
3700
Machine weight
kg
52000
Fuel tank capacity
L
500
Hydraulic fuel tank capacity
L
500
Max. tracion
KN
320
Wheel base
mm
4850
Min.turning radius
mm
9500
Standard fork size (L * W * H)
mm
1600*300*155
Max height of lifting fork
mm
3200
Engine Power
Kw
276
Product Configuration
1. Standard configuration
Engine:China National Heavy Duty Truck Hangfa Engine
Gearbox:ZL80
Manipulate forms:pilot control
Druve axle:Self-made reinforced drive axle
Attachment:fork
Cooling system:Large water tank and oil cooler
Braking system:Gas cap oil brake system
2. Optional Configuration
Tyre protection chain
Quick change or simple fork bucket
Cummins engine/Weichai engine
Air conditioner
Vehicle terminal system
Remote fault intelligent diagnosis system
Product Application Diagram

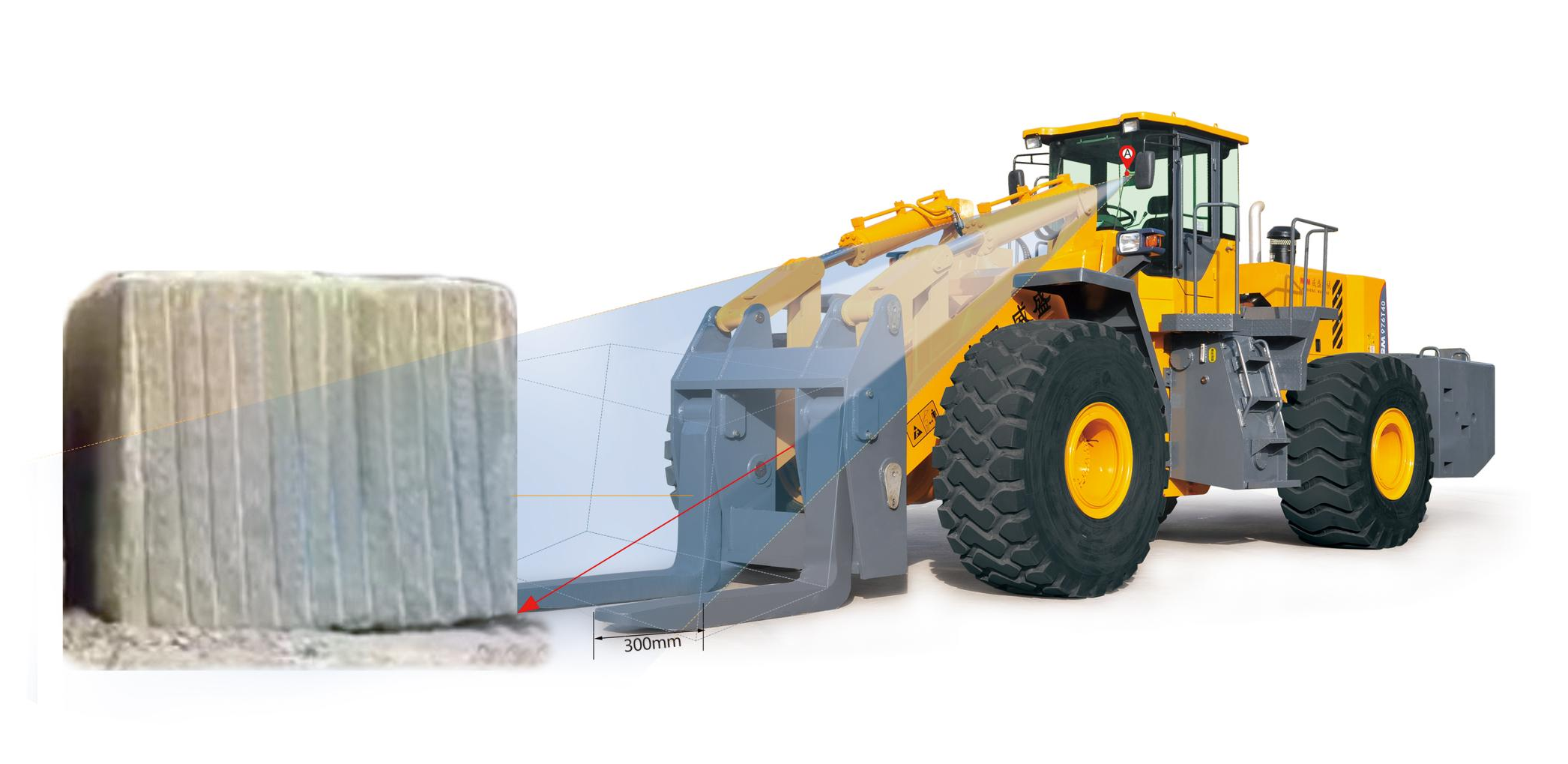

1、Point A is 700mm height from the seat (the driver's normal sitting position at the eyes), when the driver's line of sight is at point A and the fork is in the horizontal state, the driver can see the fork tines to the fork tines in 300mm, and the fork tines can be seen inserted into the state when loading and unloading the materials in the lifting process, which makes it easy to work safely.

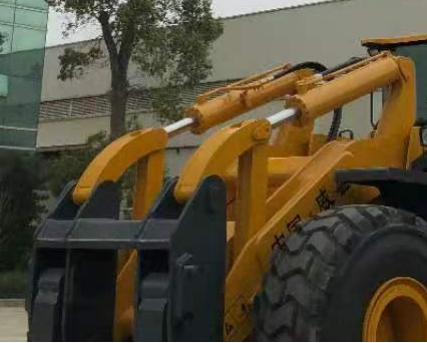

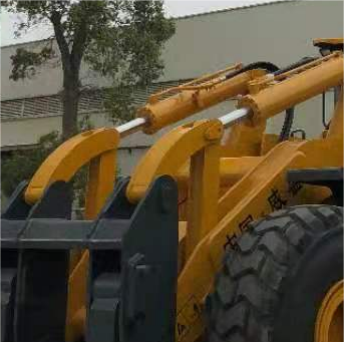

2、Adopting a forward eight link structure, the problem of interference between stones and rocker arms during fork loading of materials with a six link structure is solved. The change in digging force is small, and stable digging output can be provided. Good translation performance, more secure. The boom adopts a single-sided double piece boom plate structure, which forms a box shaped structure with higher strength and better deformation resistance.
