Container Rotating Loader
PRODUCT SERIES: Container Rotating Loader
Machine Dimensions (L×W×H): 12440 mm × 3640 mm × 3700 mm
Machine Weight: 62000 kg
Wheel Base: 4850 mm,
Wheel Tread: 2880 mm
Max. Lifting Fork Height: 3200 mm
Fork Size: 2470 mm × 335 mm × 110 mm
Rated Capacity (lift horizontally for the entire): 32500 kg
Loading Capacity: 40000 kg
Load Center Distance: 1200 mm
Eccentricity: 1500 mm
Eccentric Load: 18000 kg
Engine Power: 251 Kw/2200 rpm
Remark: With technical progress, the product structure and parameters will be continuously improved. If the sample information is slightly inconsistent with the real object, the real object shall prevail.
Color:
-
Product Description
Container rotating loader adopts special accessory device to realize quick and controllable turn-over of 20-foot container in 360 °, which meets efficient loading and unloading of bulk materials, such as strategic materials, building sand and stone materials, various ore fines, coal coke, slag, iron slag and coal slag, urban construction wastes and various industrial dregs.
Product Application Scope
It is widely used in one of the important links of high-efficiency operation in the innovative transportation mode of bulk materials (conversion from public transport to railway transport/conversion from bulk transport to bulk transport) with environmental protection and high pressure. This equipment is the preferred equipment for efficient handling of containerized bulk cargo.
Product Parameters
Project name
Unit
WSM988C40
machine length
mm
12440
machine width
mm
3640
machine height
mm
3700
weight of machine
kg
62000
Wheel base
m
4850
Wheel tread
mm
2880
Max. height of lfting fork
mm
3200
Fork size
mm
2470X335X110
Rated capacity(lift horizontally for the entier)
kg
32500
Loading capacity
kg
40000
Load center distance
mm
1200
Eccentricity
mm
1500
Eccentric load
kg
18000
Engine power
Kw/rpm.
251/2200
Remark:With the technical progress, the product structure and parameters will be continuously improved. If the sample information is slightly inconsistent with the real object, the real object shall prevail.

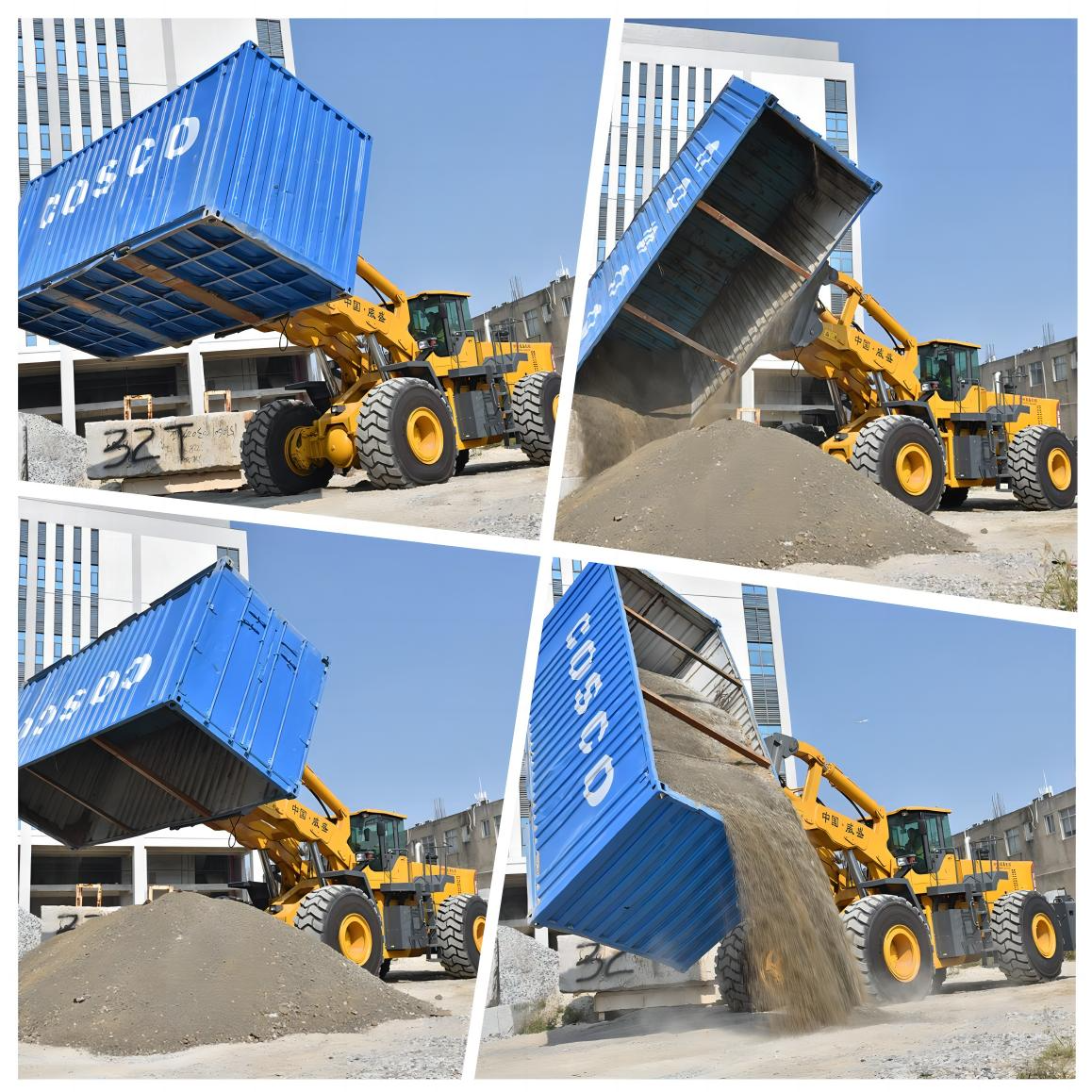

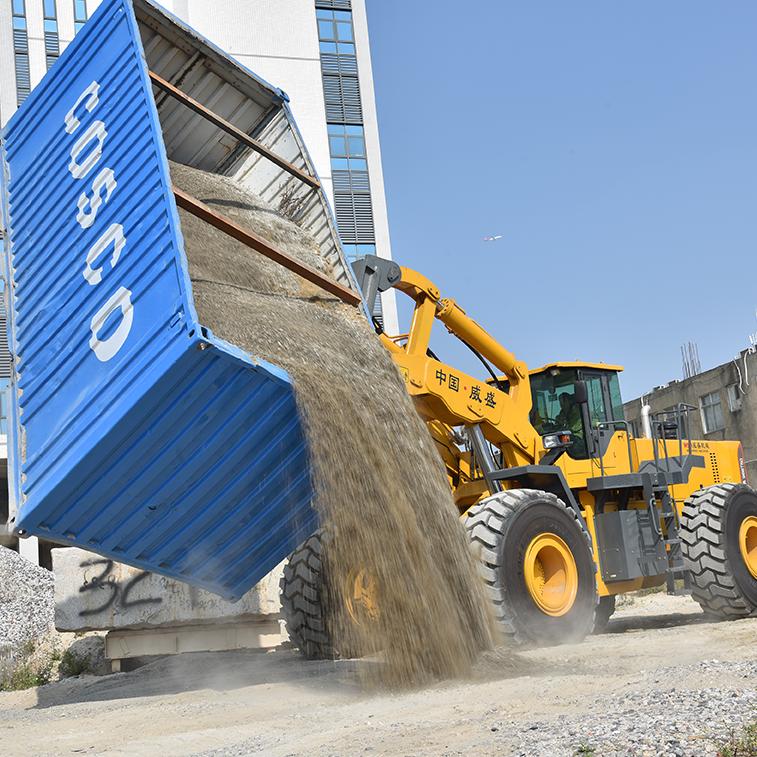

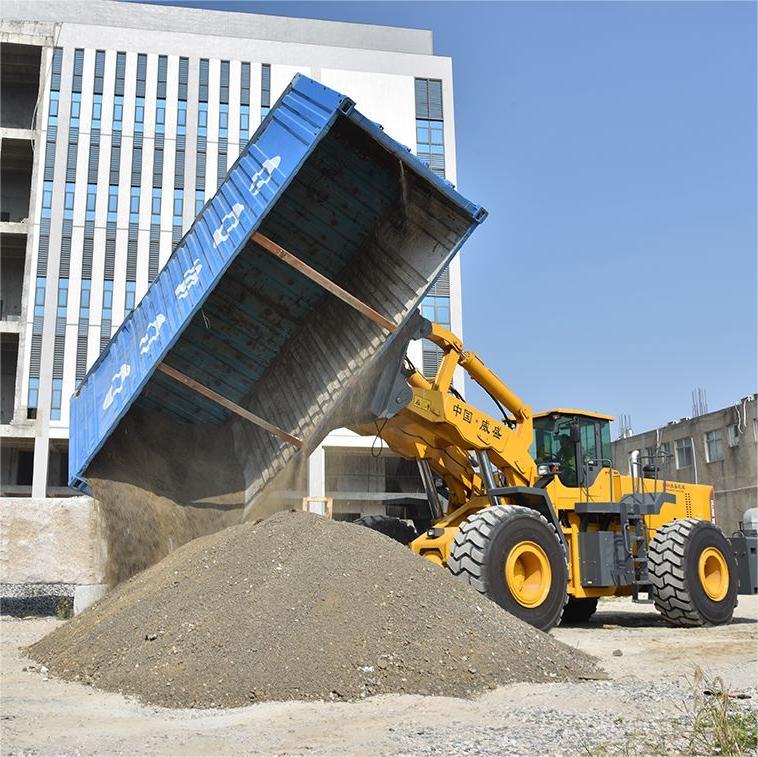

Product Application Diagram
