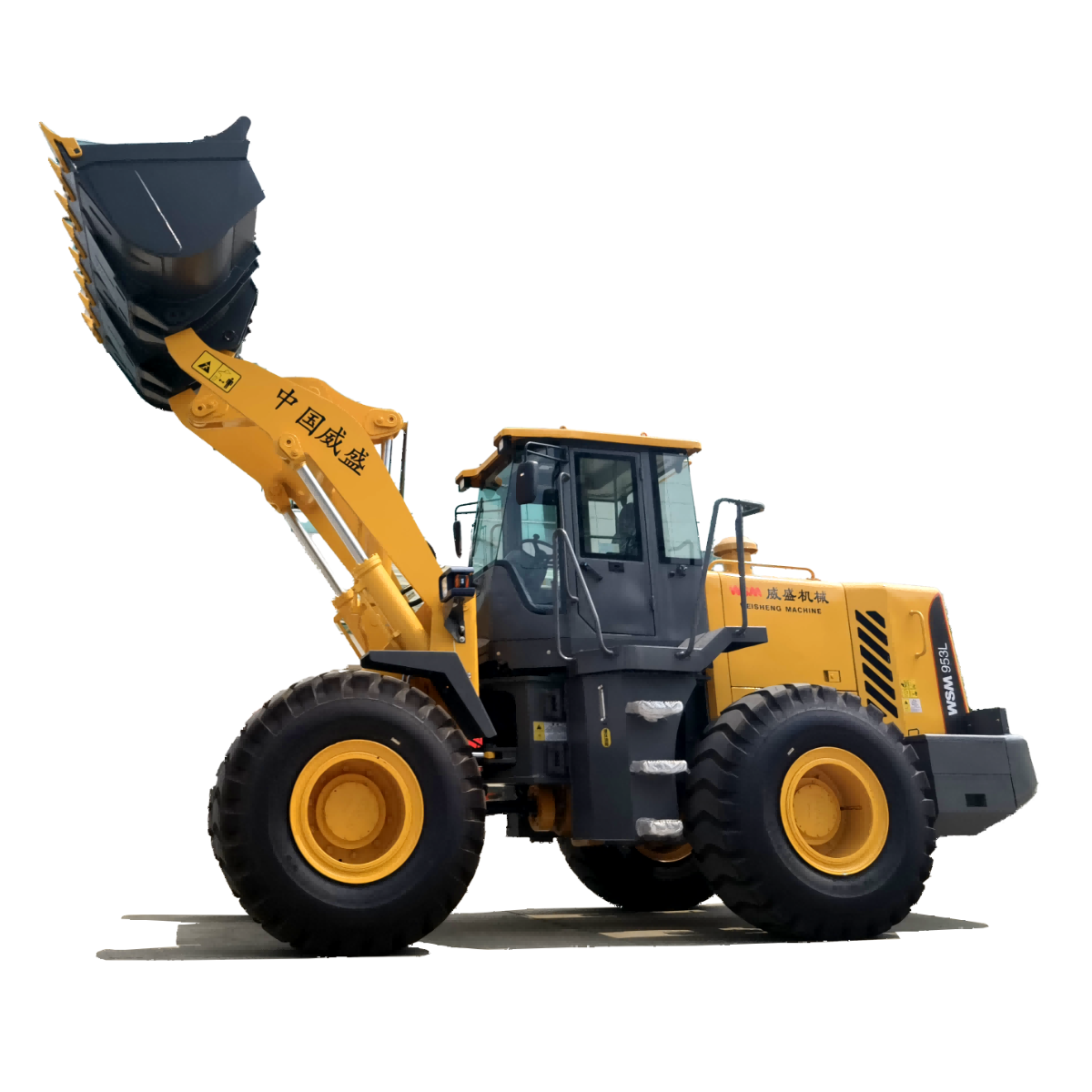

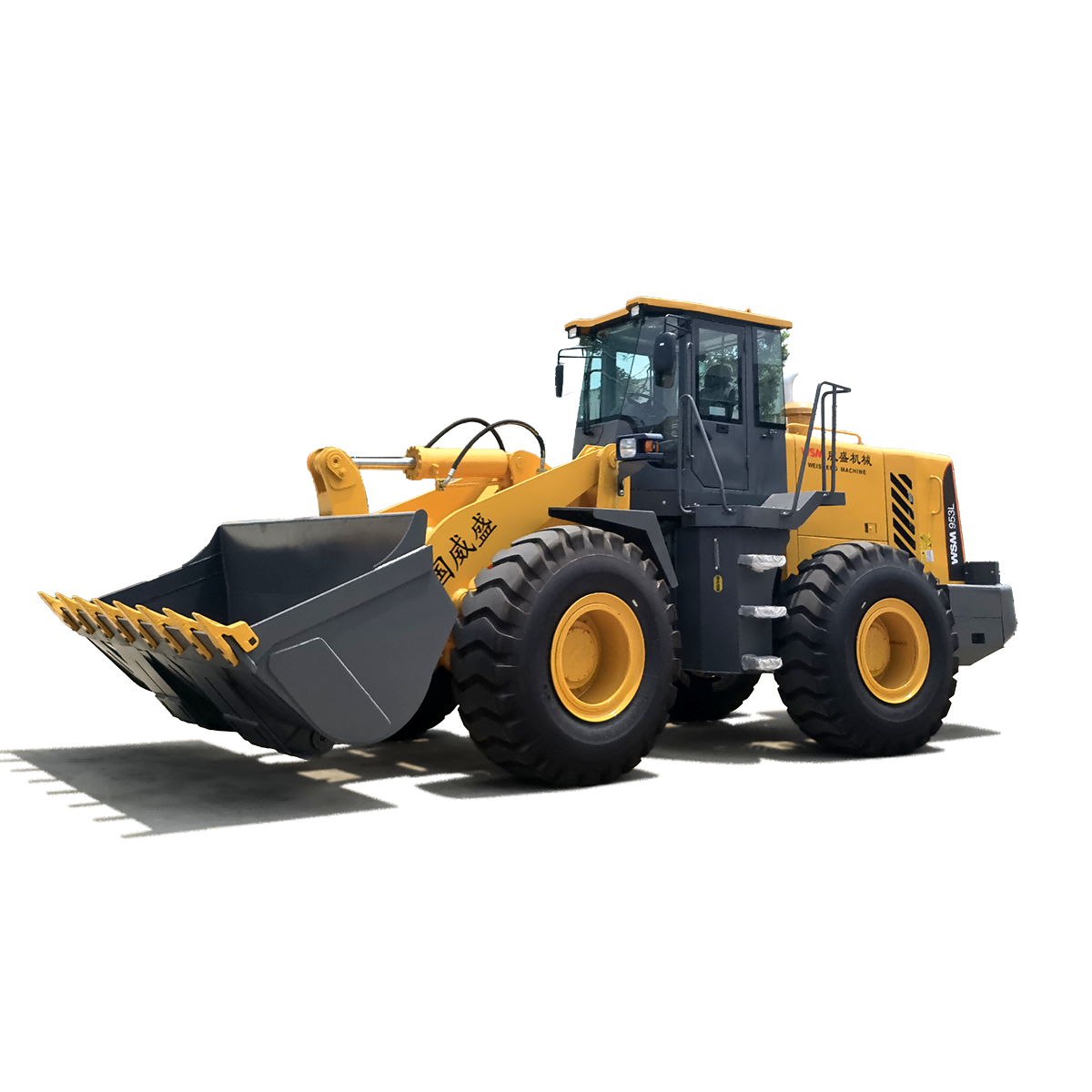

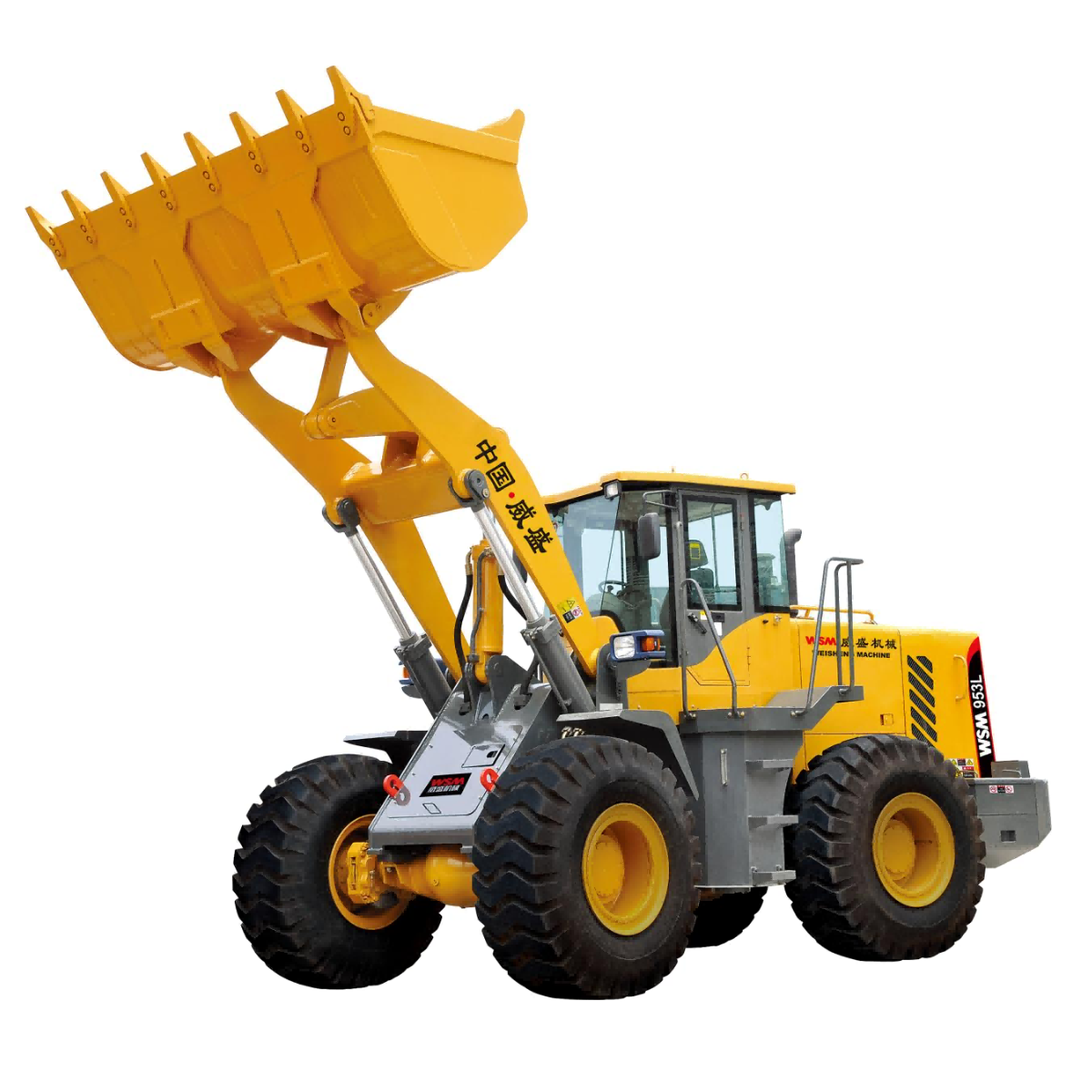

5 Ton Wheel Loader
PRODUCT SERIES: Wheel Loader
Wheel loader is a type of shovel transportation machinery widely used in engineering and urban construction sites such as highways, railways, ports, docks, coal, mines, water conservancy, national defense, etc. It plays an important role in reducing labor intensity, accelerating engineering construction speed, and improving engineering quality.
Color:
-
Product Features
1. The walking structure is tire type, light in weight, fast in speed, flexible in movement, high in efficiency, not easy to damage the road surface, and high in grounding pressure
2. The loading and unloading mode is front unloading type, with simple structure, reliable operation and good vision, which is suitable for various operation sites;
3. The transmission mode is hydro-mechanical transmission, with small impact and vibration, long service life of transmission parts, convenient operation, and automatic adjustment between speed and external load.
Product Application Scope
The loader is mainly used for shoveling, loading, unloading and transporting bulk materials such as soil and stones, and can also be used for light shoveling and excavating of rocks and hard soils. Bulldozing, lifting, loading and unloading of other materials can also be completed if different working devices are used. It is mainly used for filling and excavation of subgrade works, aggregate and loading of asphalt and cement concrete stockyard during highway construction.
Product Parameters
Model
Unit
WSM953L
Rated lifting capacity
kg
5000
Bucket capacity
M³
3.0-4.5
Max. unloading height
mm
3050
Unloading distance (at maximum unloading height)
mm
1148
Length(Place the bucket flatly on the ground)
mm
7753
Width(Bucket width of bucket)
mm
3024
Height
mm
3423
Machine weight
kg
16600
Wheelbase
mm
2920
Min.turning radius(Outer side of bucket)
mm
6680
Engine Power
Kw/rpm
162/2200
Product Details Picture

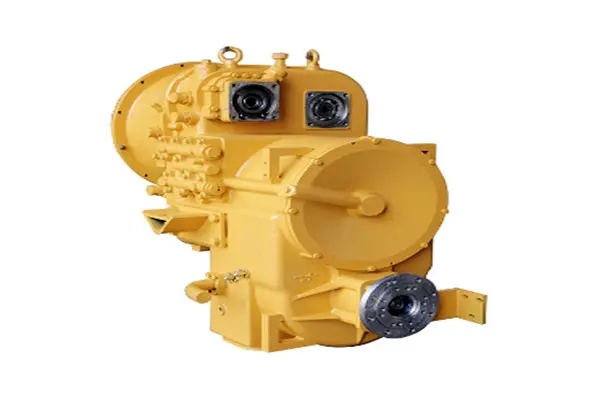

Gearbox:
The special power gearshift planetary transmission is adopted, with strong self-adaptability, which can change its output torque and speed accordingly with the change of load, and absorb and eliminate the impact and vibration of the engine and external load on the transmission system.

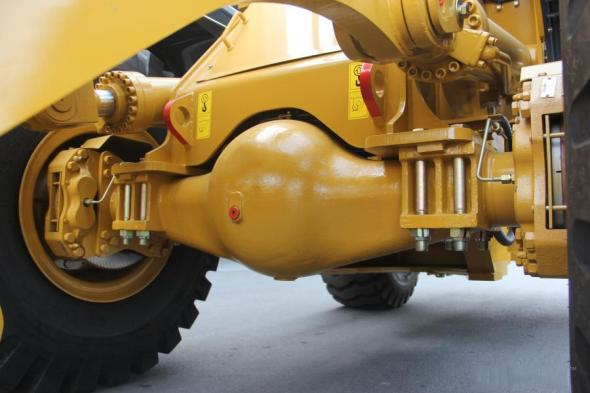

Drive axle:
Special high load drive axle with excellent performance and mature technology is adopted, with large bearing capacity and high reliability.
Braking system:
With optimized sealing structure and pipeline layout, the air-jacking oil caliper disc type four-wheel service brake is stable, safe and reliable.

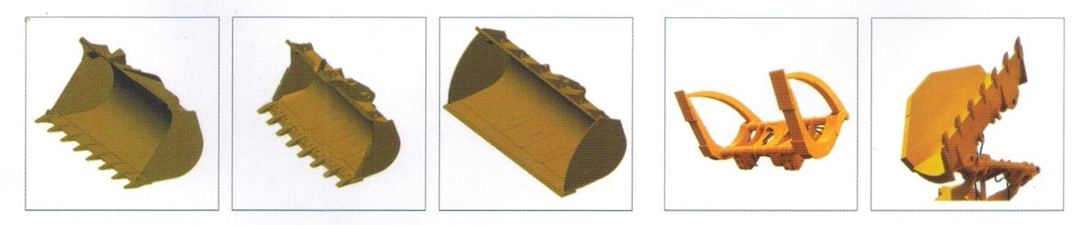

Bucket:
Different buckets can be selected according to different materials. High-strength wear-resistant main cutter plates are used for buckets. The bucket bottom and back wall are reinforced according to the shoveling and loading process.

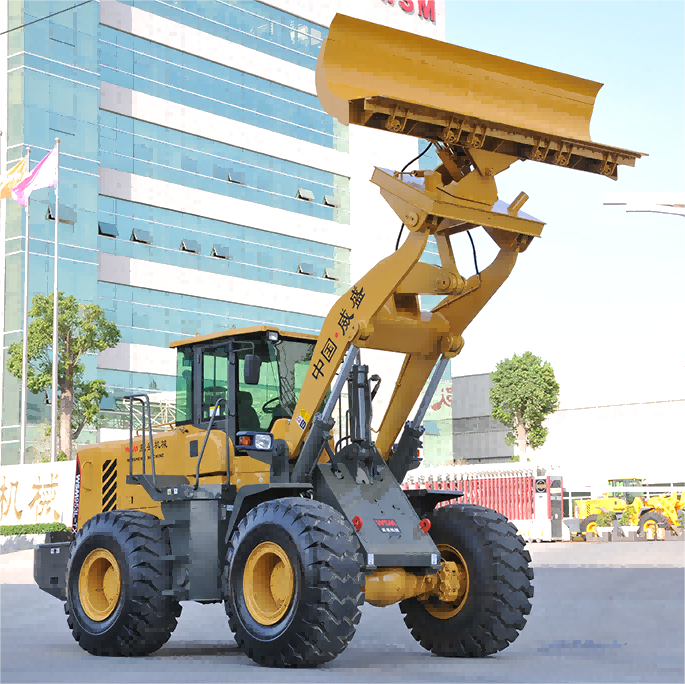

Different tools can be selected according to different industrial mines.

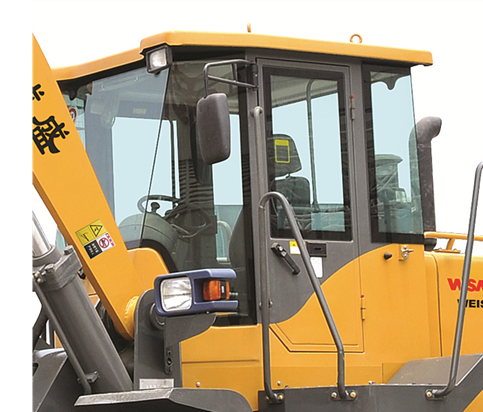

Cab:
The standard configuration is a new luxury cab with 360 ° view, full suspension seat, and easy control, which expands 20% of the driving space, multi-channel process noise reduction, USB interface, radio and other personalized demand configurations. Meanwhile, reversing video, 360 panoramic video and anti-falling cab are optional.
